Fabrication · Completed major renovation
Residential Renovation
An owner-led whole-house renovation combining demolition, repair, drywall, paint, flooring, trim, ceilings, stairs, electrical work, and project sequencing across multiple rooms.

Problem
The house required broad repair and finishing work across multiple trades, with limited money and the need to sequence work so one improvement did not destroy another.
Description
What I built or investigated
I took a heavily worn interior through demolition, wall repair, electrical and fixture work, paint, flooring, trim, suspended-ceiling installation, stair refinishing, cleanup, and final room assembly while keeping material cost and livability in view.
Iterations
The work did not happen in one jump.
- 01

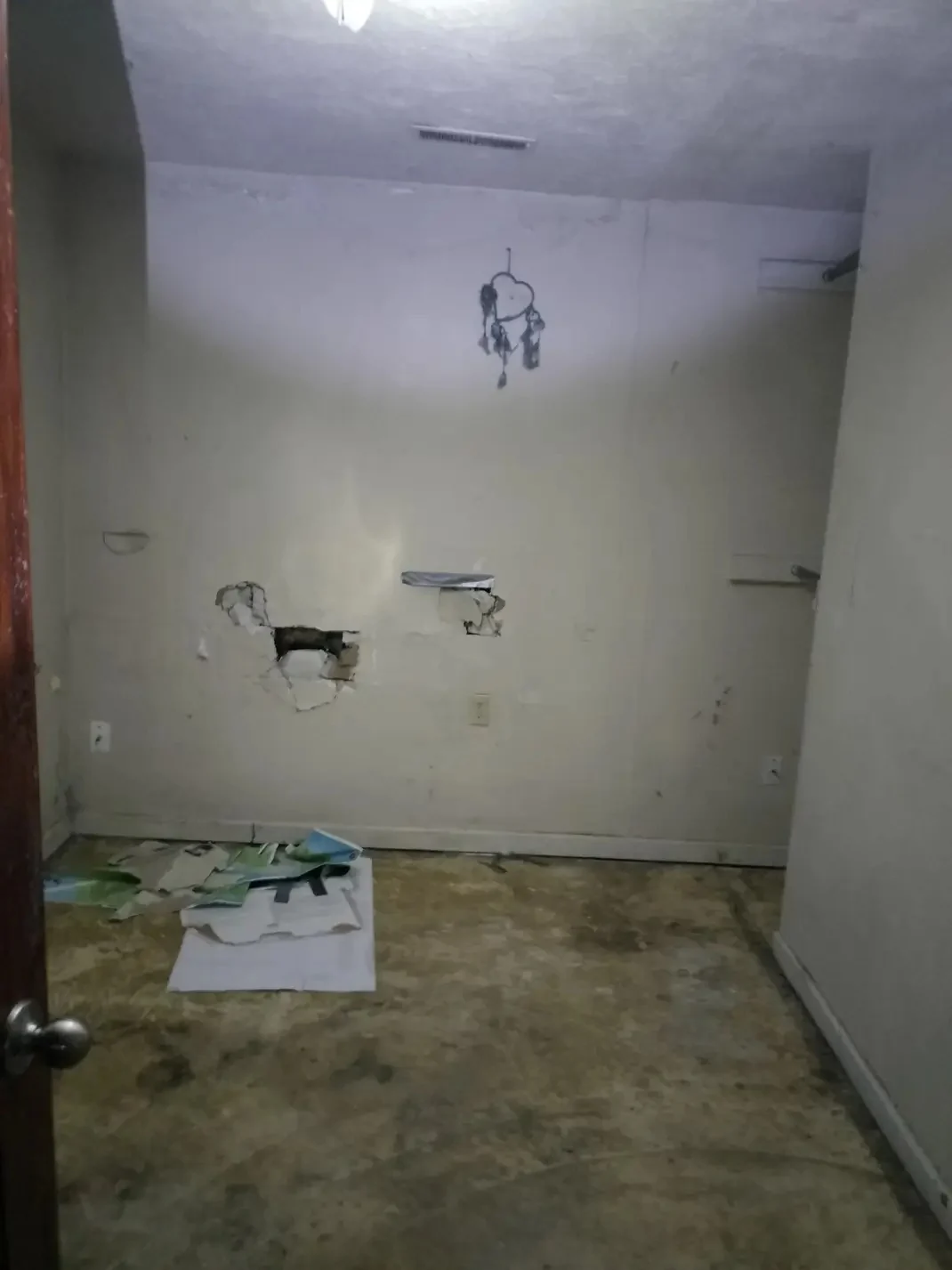

Removed damaged finishes and opened walls where hidden access, electrical, or repair work was required.
- 02
Repaired and refinished walls before committing to flooring and trim.
- 03

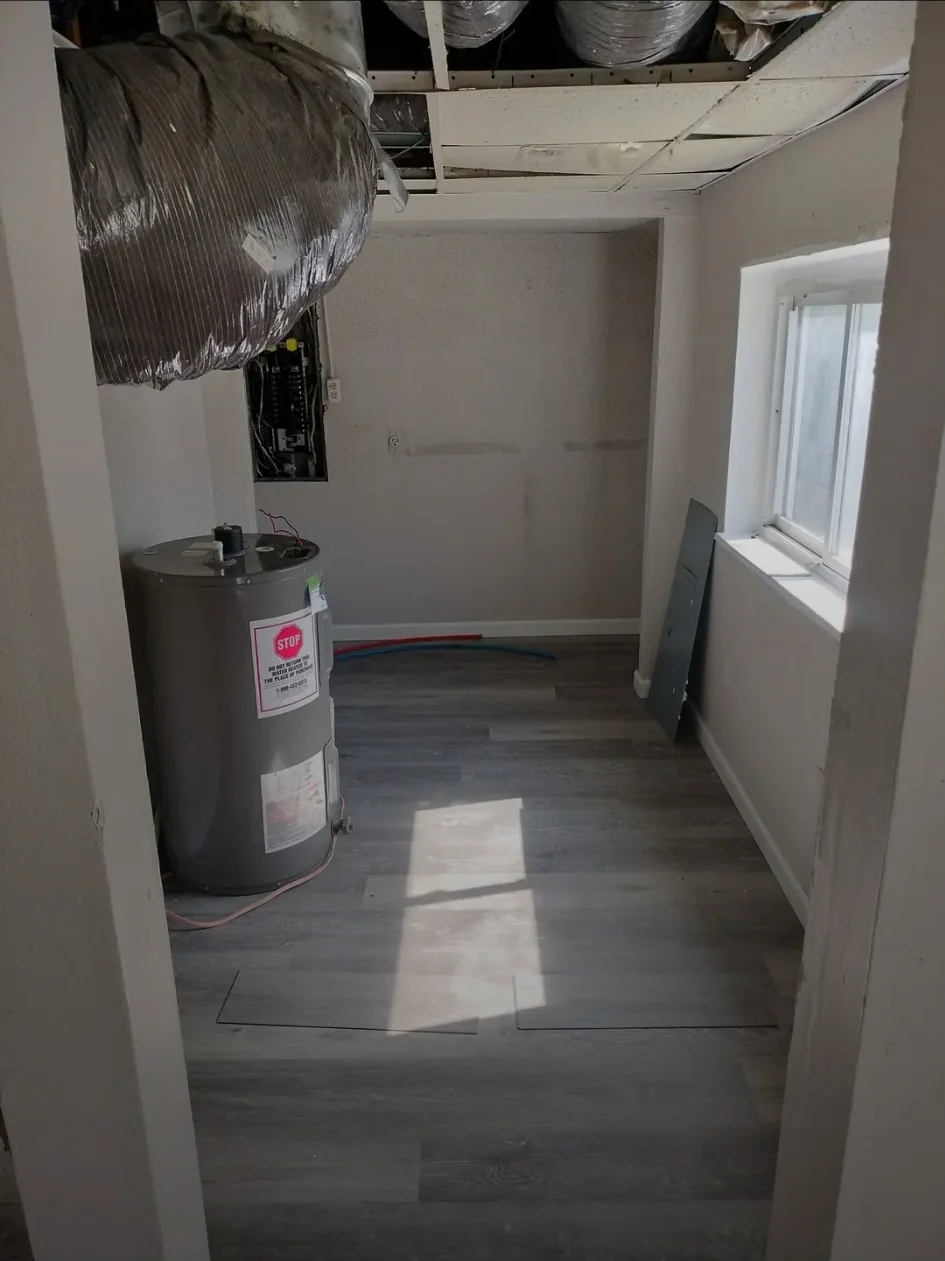

Rebuilt rooms in sequence: surfaces and utilities first, then ceilings, paint, floors, baseboards, doors, and final cleanup.
- 04

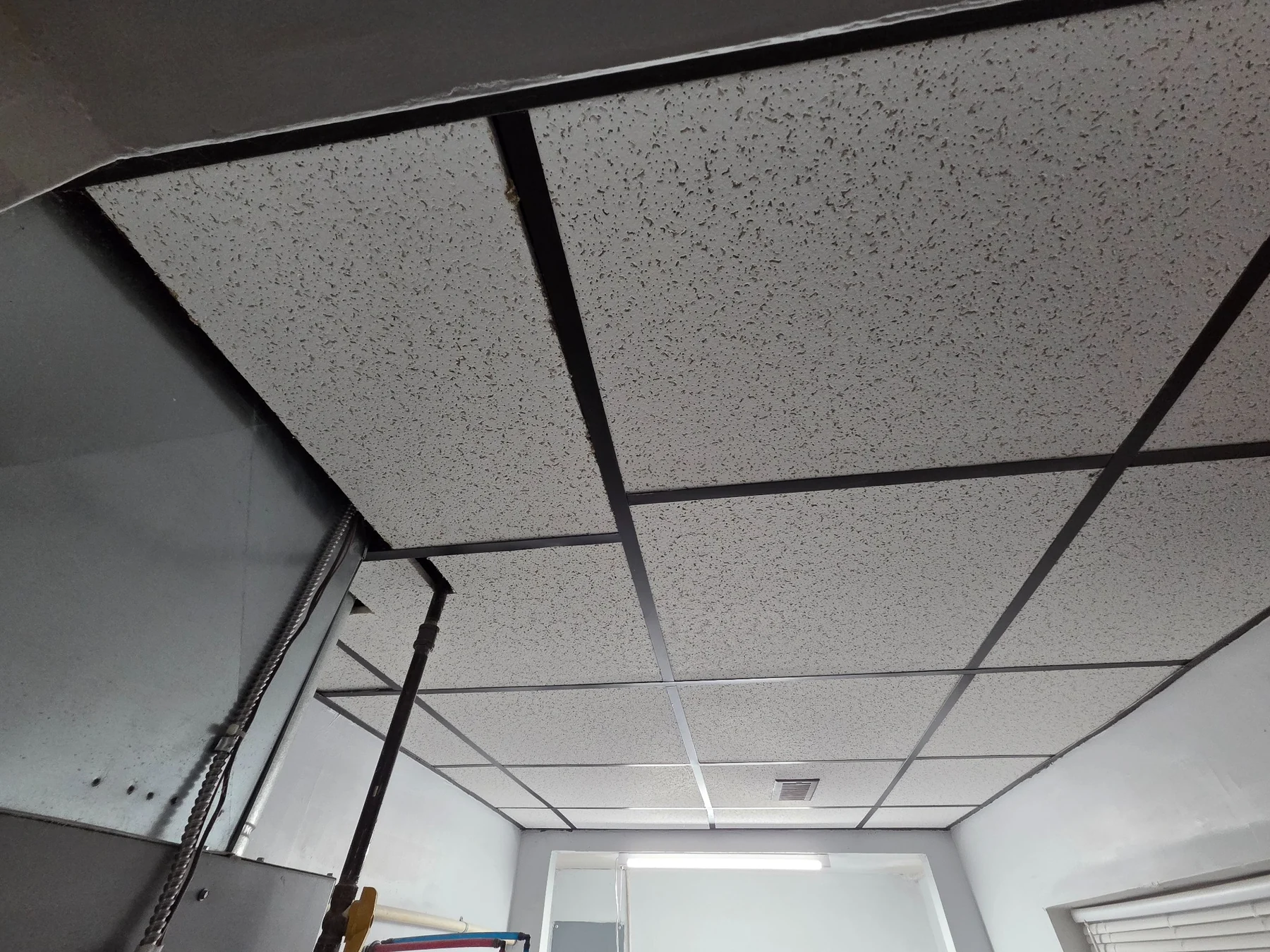

Installed a suspended ceiling around existing ductwork and utilities to preserve future access.
- 05

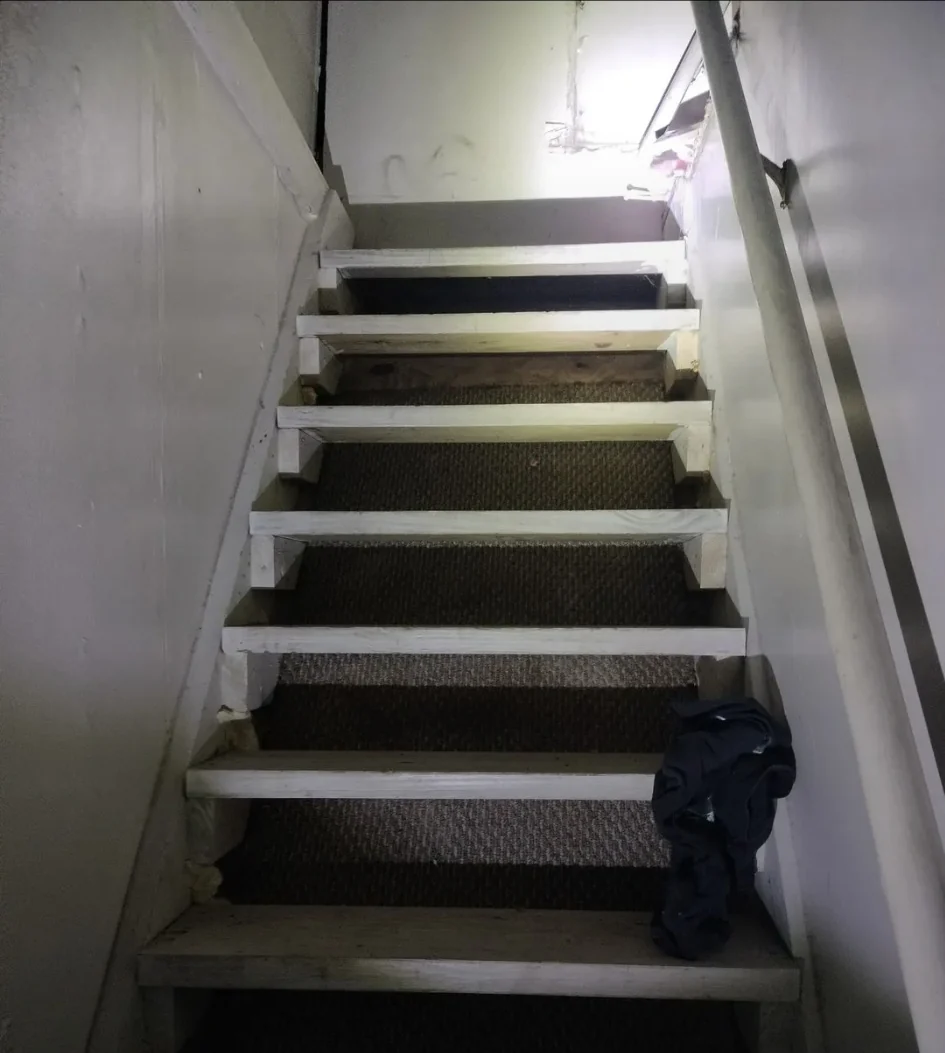

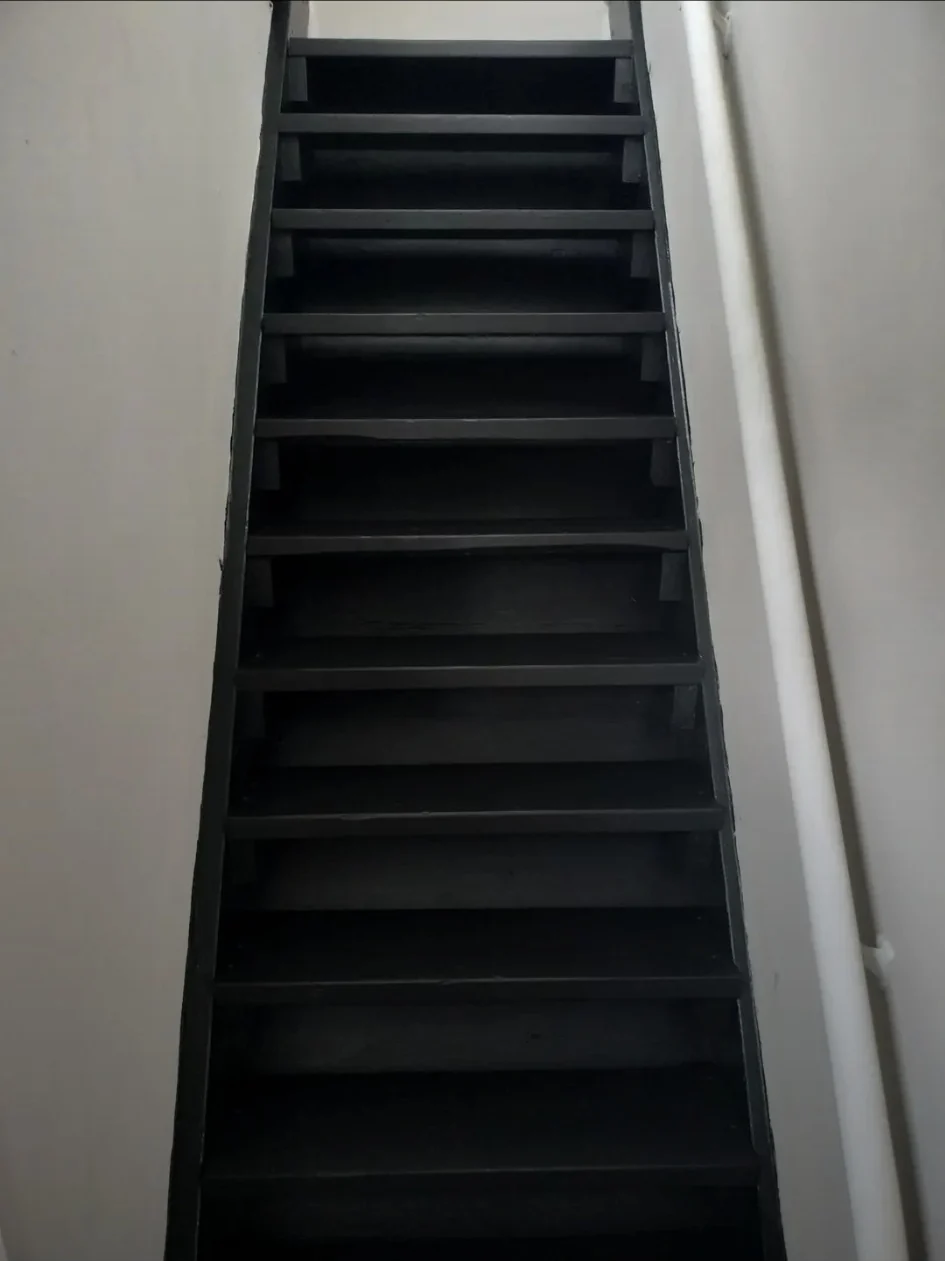

Reworked the stairway from worn carpeted treads to a durable dark finished surface.
- 06

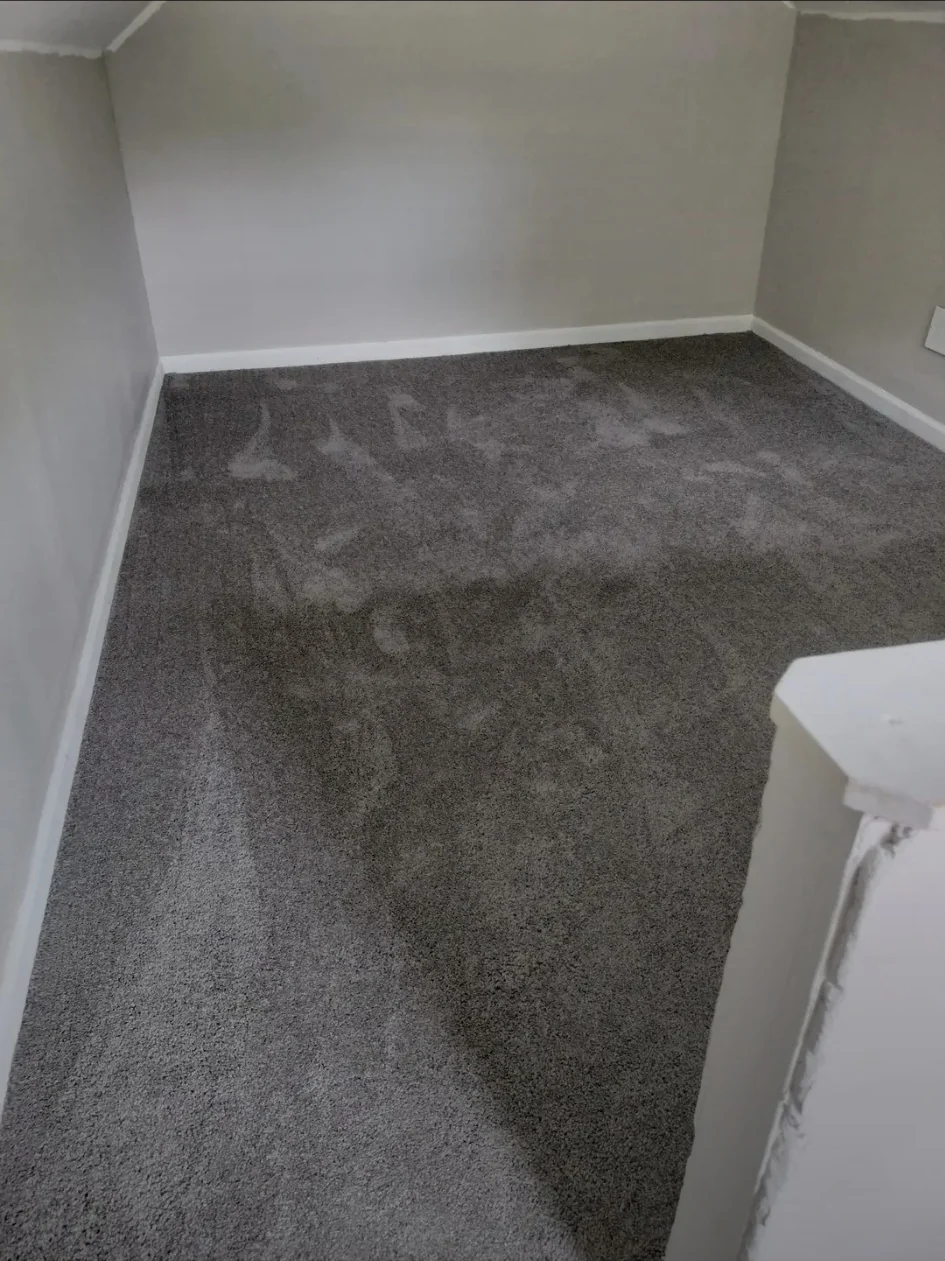

Repeated paint and finish work where early passes did not meet the final standard.
Result
Where the project landed

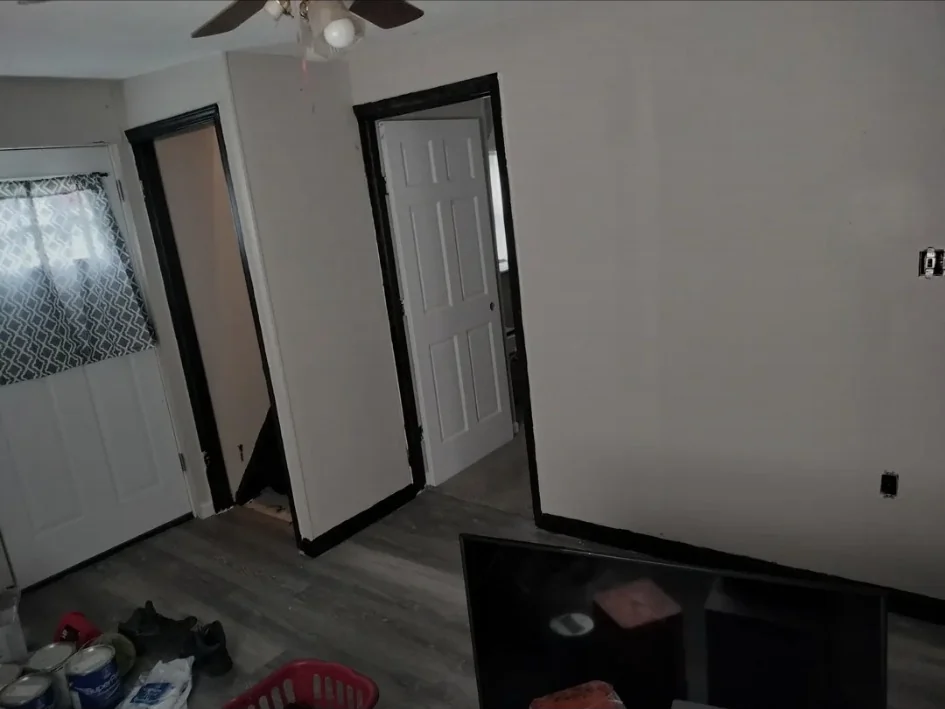

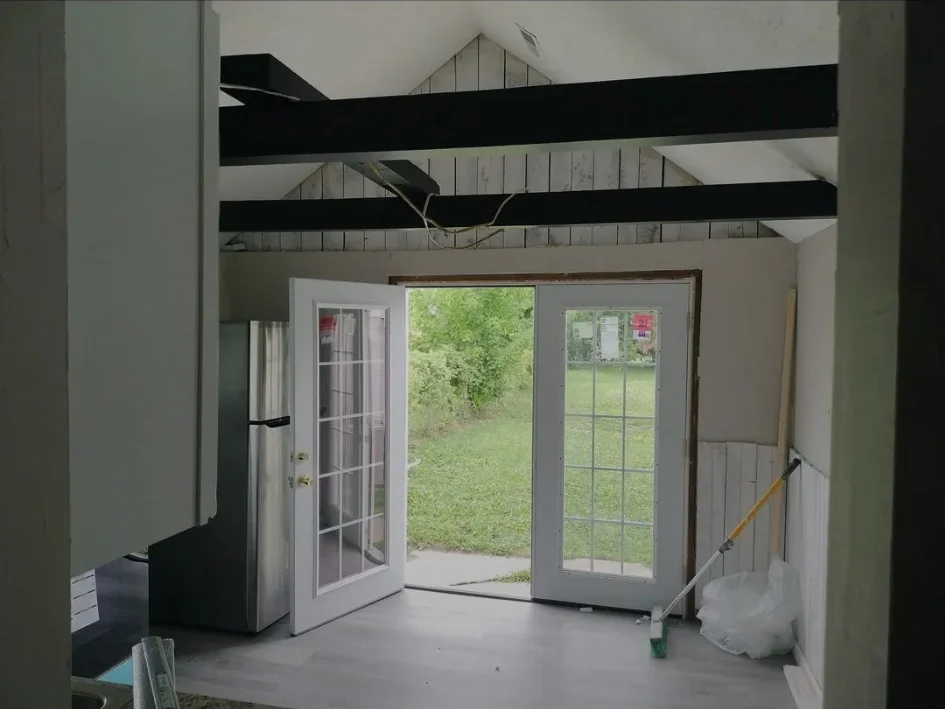

A visibly transformed, functional interior completed through owner-led multi-trade work rather than a single cosmetic refresh.
Lessons
What carried forward
- Demolition reveals the real scope; budgets and schedules must adapt to what is behind the surface.
- Finish quality depends on preparation and sequencing more than the final coat or flooring alone.
- Access to utilities should be designed into the finished space, not covered permanently.
- Before-and-after documentation turns broad renovation work into verifiable evidence.
Images & evidence
Work in context
Documentation status
This is a living case study. New photos, measurements, diagrams, source files, and exact outcomes can be added without changing the permanent project URL.
